TDS-h2489FU R2

Dual-CPU U.2 NVMe all-flash rackmount NAS, expandable for 100GbE and PB-scale storage

TDS-h2489FU R2

Features

The flagship TDS-h2489FU R2 U.2 NVMe all-flash rackmount NAS, powered by dual Intel® Xeon® Silver 4300 series processors in 16/32-core configurations, delivers a highly efficient, secure, and reliable enterprise storage solution. Its robust performance meets the demands of virtualization, data centers, AI Big Data storage, cloud-based applications, and 3D rendering workstations, addressing the need for low-latency and high-load multitasking applications. The 24-bay TDS-h2489FU R2 comes with sixteen 2.5-inch U.2 PCIe NVMe slots and eight 2.5-inch U.2 PCIe NVMe / SATA 6Gbps slots, along with four PCIe Gen 4 expansion slots for quickly upgrading to 25GbE / 100GbE networking and PB-level storage, supporting high-speed data access and data growth. Dual redundant power supplies minimize the risk of unexpected hardware failure, ensuring stable system operation.

Scalable ECC RDIMM memory up to 1TB
Equipped with error-correcting DDR4 ECC RDIMM memory, expandable up to 1TB, boosting multitasking performance.
25GbE as standard and upgradable to 100GbE
Enable Port Trunking and connect to a network switch to expand bandwidth for more devices and workstations.
High expandability with PCIe Gen 4
Has four PCIe Gen 4 slots, allowing installing high-speed network cards (10/25/100GbE), M.2 SSD expansion cards, Fibre Channel cards, and storage expansion cards.
Petabyte-scale storage
Flexibly connect QNAP PCIe JBOD or SAS JBOD for higher capacity, exceptional performance, and flexible expandability.
M.2 SSD caching
Two M.2 PCIe NVMe / SATA slots for cache acceleration or high-speed storage pools, enhancing performance and data access speed.
Immutability
Uses the ZFS-based QuTS hero operating system, which ensures high data integrity with immutable storage, snapshot protection, data deduplication, and SSD optimization.

Unmatched on-demand performance, seamlessly powering critical applications.

Virtualization

Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
Data Centers

Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
Media and Entertainment (M&E) production

Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.

Dual-CPU performance with Intel® Xeon® Silver 4300 Series processors

Processor

Two Intel ® Xeon® Silver 4314 16-core and 32-thread processors (up to 3.4GHz).

More specs and details
Memory

Supports up to 1TB (32 x 32 GB) DDR4 ECC RDIMM RAM.
AES-NI Encryption

AES 256-bit hardware-accelerated encryption boosts system performance while securing sensitive data.

Enhanced transmission efficiency

6 x 25GbE iSCSI, Random IOPS (4K), Compression On, Dedupe Off

Read

IOPS

Write

IOPS

6 x 25GbE SMB, Sequential Throughput (1MB), Compression On, Dedupe Off

Read

MB/s

Write

MB/s

6 x 25GbE iSCSI, Random IOPS (4K), Compression On, Dedupe Off	Read 1,089,259 IOPS	Write 540,515 IOPS
6 x 25GbE SMB, Sequential Throughput (1MB), Compression On, Dedupe Off	Read 15,371 MB/s	Write 17,198 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:
NAS: TDS-h2489FU-R2-4314-128GB with RAM upgrade to 192GB, with QXG-25G2SF-CX6*3
OS：QuTS hero h5.1.7.2757 Build 20240507
Volume Type: Samsung PM 9A3 960GB PCIe Gen4x4 x24 (RAID 50)
Client PC: 5* Client PC simultaneously read and write 512GB file
Intel Core™ i7-7700 4.20 GHz CPU, 32GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2019, and Intel Core™ i3-8100 3.60 GHz CPU, 4GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2016

Ultimate hardware design unleashes all-flash NVMe performance.

The TDS-h2489FU R2 features an advanced hardware design with exceptional expandability to maximize SSD performance. The swappable controller module simplifies management and hardware maintenance.

25GbE as standard, expandable to blazing-fast 100GbE.

Ultra-high networking maximizes all-flash performance! TDS-h2489FU R2 delivers high bandwidth to meet enterprise demands for large file access, backup/restore, and running multiple virtual machines.

Built-in 2.5GbE

Provides four 2.5GbE ports with Port Trunking support for increasing bandwidth potential and network failover.

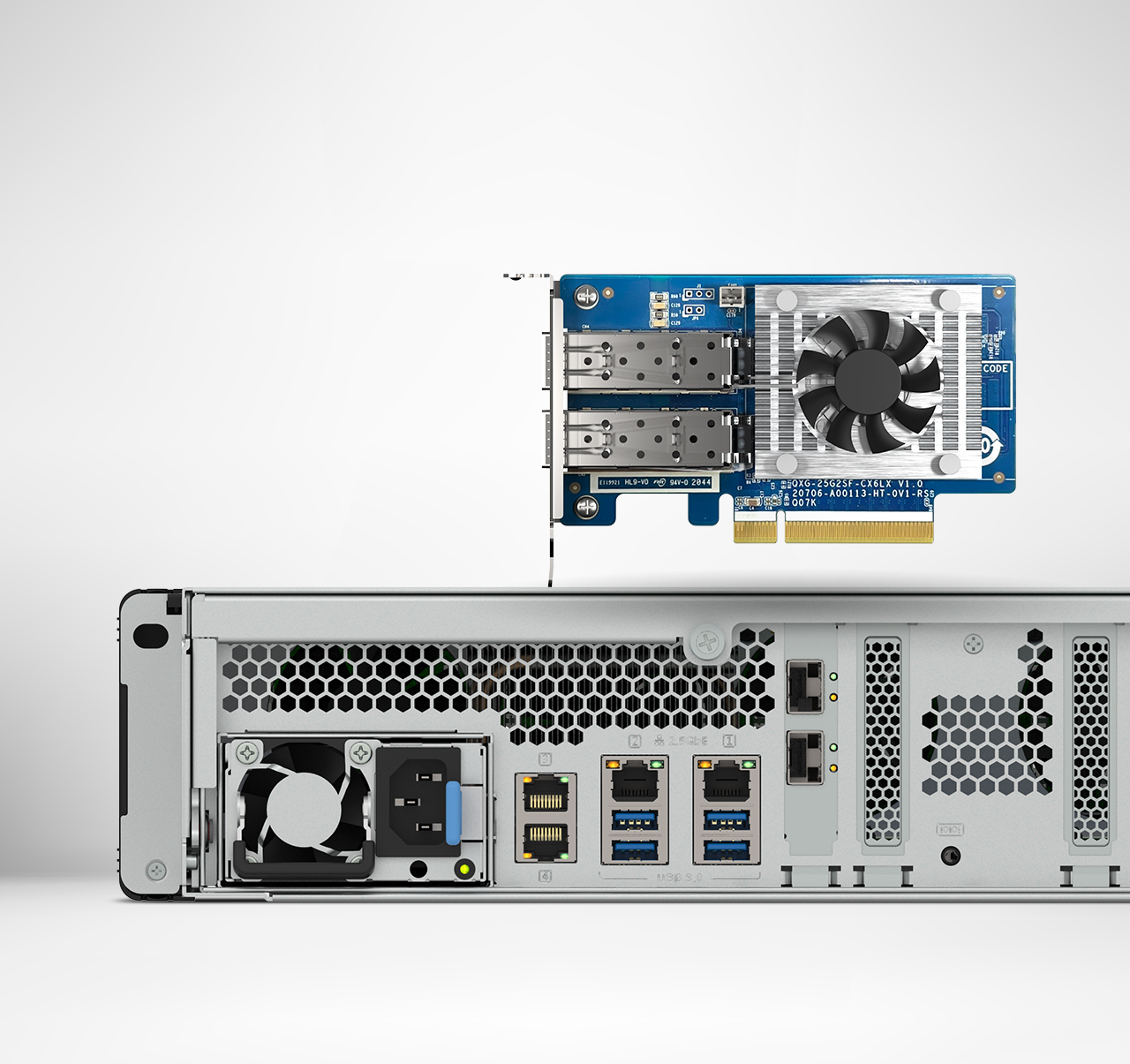

Pre-installed 25GbE NIC for enhanced virtualization performance

The dual-port 25GbE network expansion card supports iSER (iSCSI Extensions for RDMA) to accelerate VMware® ESXi data transfers while reducing CPU load. It also supports SR-IOV, optimizing virtual machine network resource allocation, minimizing bandwidth overhead, and ensuring high-performance, and stable virtualization operations.

Learn about 25/100GbE ultra-fast networking solutions

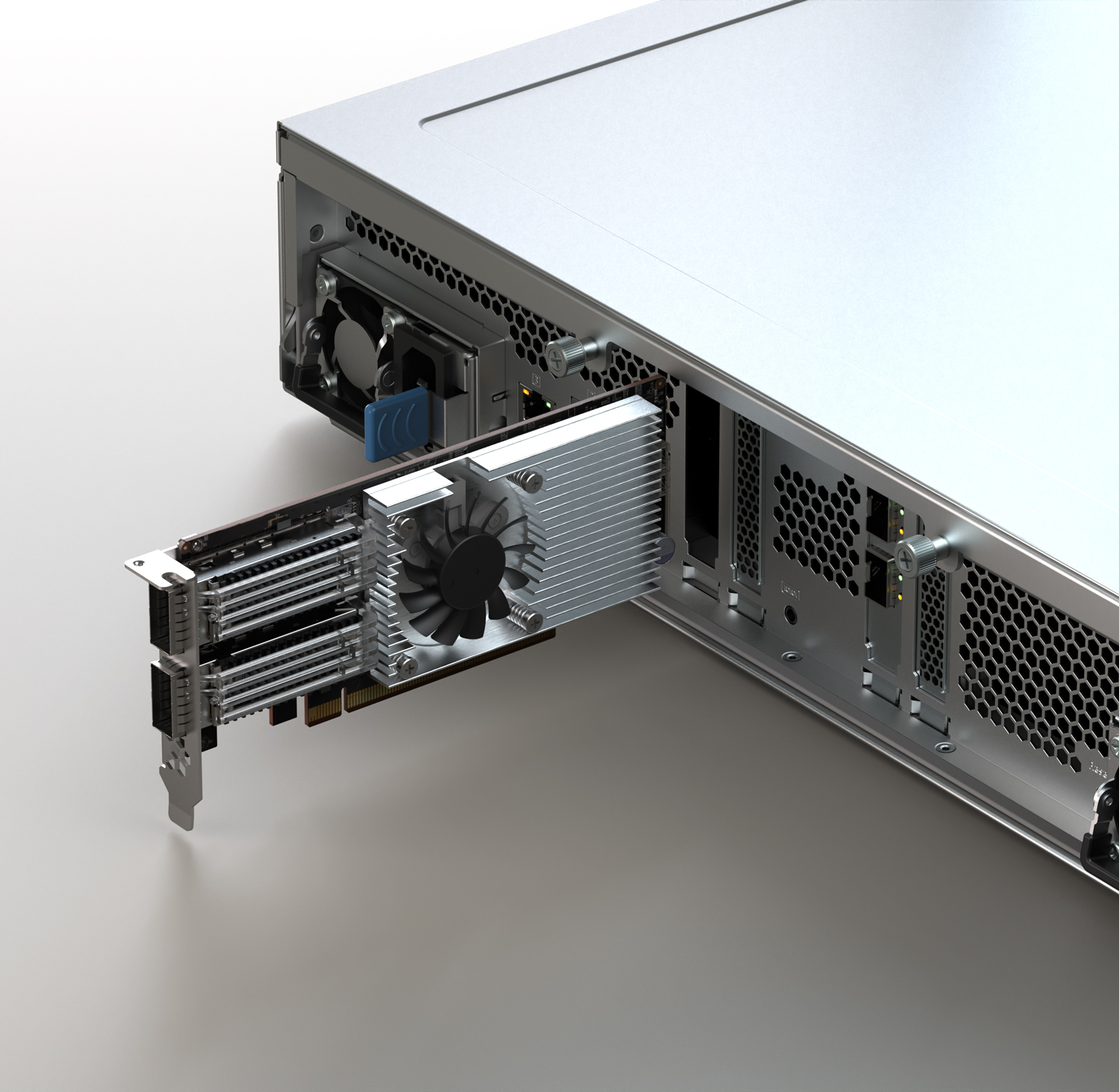

Upgrade to hyper-speed 100Gbps

The TDS-h2489FU R2 supports 100GbE network cards, which provide the bandwidth to tackle bandwidth-demanding applications.

Explore 100GbE expansion cards
Discover recommended 100GbE network switch

• The included dual-port 25GbE expansion card is pre-installed in PCIe slot 4.
• You are recommended to install the 100GbE expansion card in PCIe slot 1 (Gen 4 x16) for optimal performance.

More PCIe Gen 4 Slots. Endless Possibilities.

The TDS-h2489FU R2 has four PCIe Gen 4 slots, which have twice the bandwidth of PCIe Gen 3, enabling seamless expansion of NAS functionality to support diverse applications.

25/100GbE network card

Enable lightning-fast throughput for bandwidth-hungry tasks (virtualization, mass data transmission, and fast backup/restore).

Explore
Storage expansion card

Flexibly connect storage expansion units (PCIe JBOD, SAS JBOD or SATA JBOD) to the TDS-h2489FU R2 to attain PB-scale storage with high-efficiency data transfer.

Check compatible expansion units

Explore
QM2 expansion card

Add M.2 SSDs or 2.5GbE / 10GbE connectivity to the TDS-h2489FU R2 for optimized performance and bandwidth.

Explore

Flexible PB-level storage expansion

With ever-growing data, the TDS-h2489FU R2 supports connecting up to ten PCIe JBOD units TL-R2400PES-RP, adding additional 240 drives; or sixteen SAS JBOD units TL-R1620Sep-RP, adding additional 256 drives, offering PB-scale storage capacity.

Learn More: Learn more compatible expansion units, Explore QNAP Petabyte-scale storage solution

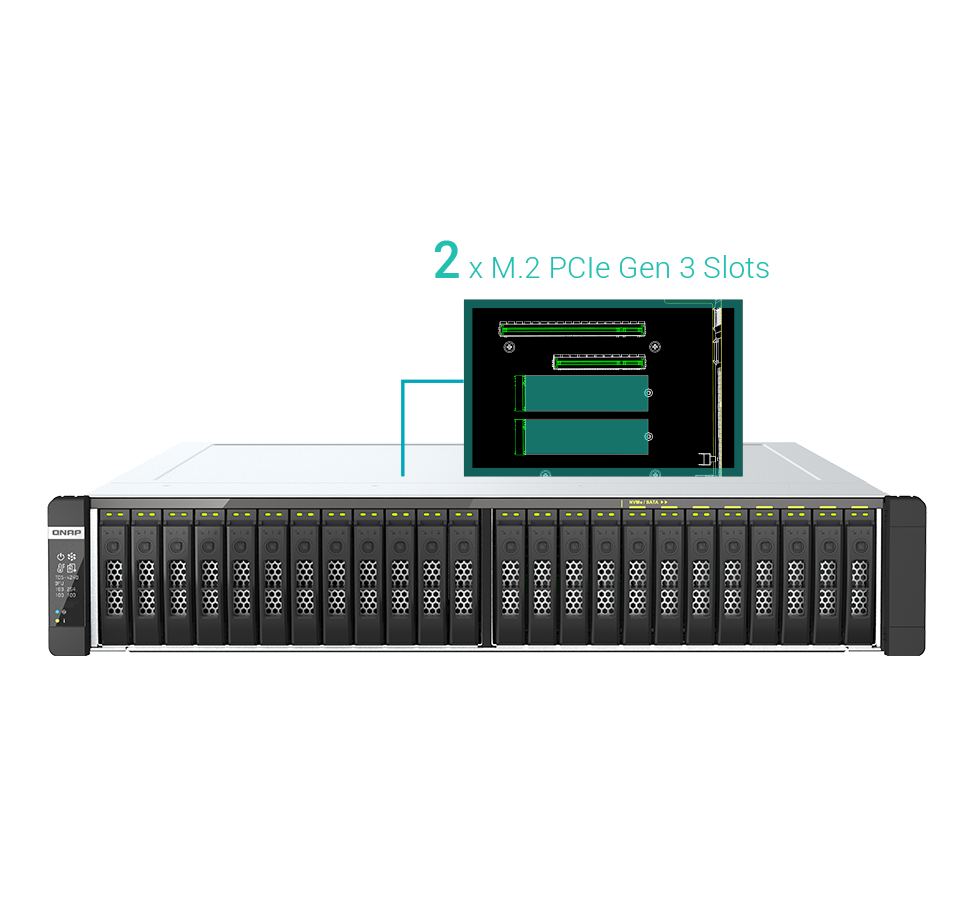

Boost application performance with M.2 PCIe NVMe / SATA dual slots

The TDS-h2489FU R2 has two built-in M.2 slots, supporting both M.2 2280 NVMe PCIe Gen 3 and SATA 6 Gb/s interfaces, enabling flexible SSD configuration to maximize NAS performance potential.

Enable SSD caching

Install M.2 SSDs and enable SSD caching to reduce latency and enhance random read/write efficiency (IOPS) for small files.

Learn more SSD cache acceleration
Create SSD storage pool

Create M.2 SSD volumes to boost intensive data transfer and access performance.
Create SSD system drive

Use an M.2 SSD storage pool as the QuTS hero system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.
Power failure protection

Add M.2 SSDs to enable ZIL power failure protection, ensuring that the NAS can continue completing unfinished data writes after power outage followed by a power restoration, and preventing data corruption while modifying data.

The HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (sold separately) is recommended for optimum M.2 PCIe NVMe SSD cooling in heavy workloads.

QuTS hero operating system

Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses’ stringent demands for performance and reliability. Explore the QuTS hero operating system Check out QuTS hero’s latest features

Automatic repair of corrupted data

ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.

Data immutability

Defend against ransomware by creating a WORM (Write Once, Read Many) folder to prevent data from being overwritten, modified, or deleted, while also enabling immutable backups.

Power failure protection

ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.

Data reduction

Inline data deduplication reduces storage consumption for maintaining optimal disk capacity.

Prevent simultaneous SSD failure

The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.

High availability (HA) and failover with dual-NAS architecture

Avoid unplanned downtime and data loss. Dive into details

Create a HA cluster with two TDS-h2489FU R2 — one as the active server, and the other as the passive server. If an unexpected failure or issue with the active server occurs, the passive server provides immediate protection with automatic failover. This ensures continuous storage service and system availability.

High availability (HA) and failover with dual-NAS architecture

Easy management and monitoring

Use the High Availability Manager app to easily configure, remove, or rebuild clusters.
Guaranteed data consistency

Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).
Ensured continuity of critical business

The passive server takes over within 1 minute if the active server fails (RTO < 60 secs).

Multi-level security strategy for enterprises

Bolster business data security with resilience from all aspects

Connection

Enterprise private network connection

Build secure VPN connection using QVPN Service. Multi-site organizations can leverage QuWAN SD-WAN to quickly set up Mesh VPN for remote workers and branches.
Filtering unauthorized access

Implement QuFirewall to allow/deny specific IP addresses and regions, preventing unauthorized access and cyber threats.

Permission

Efficient NAS user management

The TDS-h2489FU R2 supports Windows® AD, Azure® AD, and LDAP; Admins can further improve management productivity and NAS security via delegated administration.
Strengthened NAS log-in security

Set up passwordless login or two-factor authentication (2FA) for your NAS accounts to prevent data breaches and unauthorized access.

Transmission

SMB signing acceleration

Enable SMB signing to facilitate secure SMB file transfer, while QNAP’s exclusive algorithm greatly increases data signing efficiency and data transmission performance.

Assessment

Security and risk assessment

Security Center proactively detects NAS status and unusual file activity, and offers instant protective measures.
Centralized notification management

Centrally manage system events and alert notifications via Notification Center to stay up-to-date with NAS status.
Block malware attacks

Malware Remover regularly scans your NAS. When detecting malware attacks, infected files are immediately blocked and removed to ensure NAS security.

Construct a multi-level security defense system for enterprises

Gain more insights

How to configure your network and connect your NAS to prevent malware attacks?

Learn More

All-in-one backup solution

The TDS-h2489FU R2 supports various apps that cover all your backup needs. See all

NAS/File server

Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.
Cloud

Back up NAS data to/from major cloud services, including QNAP’s myQNAPcloud Storage.
Mac

Set a QNAP NAS as Time Machine backup destination.

Windows® PC/Server

Back up full PC/server systems and manage all backups from multiple devices through a single interface. Learn more
VM

Back up VMware® vSphere and Microsoft® Hyper-V with dramatically lower costs than others. Explore

Google™ Workspace/Microsoft 365®

Use QNAP’s Boxafe to back up, recover, and manage the data of 10,000+ users over multiple Google™ Workspace and Microsoft 365®.

WordPress

Backup, restore or migrate your WordPress site. QNAP NAS can also host a website. Learn more

Secondary backup or restore

By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective. Explore more >

NAS and file server

Backup NAS data to another QNAP NAS or remote server. Supports immutable backups by using WORM folders as the destination, preventing data from being overwritten, modified, or deleted to effectively protect against ransomware.
Cloud

Supports advanced technologies to save backup time, spaces, and effort.
myQNAPcloud Storage

QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.

RPO = 0 real-time replication

Real-time SnapSync syncs between shared folders/LUNs on primary NAS and secondary NAS. This assists organizations in resuming essential data and services in the shortest time. Learn more

Run VMs and Containers

With no additional fees, you can run multiple VMs of different OS on TDS-h2489FU R2. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.

VMs

Securely run Windows®, Linux®, UNIX®, QuTScloud VMs using Virtualization Station.

Learn more about QuTScloud Virtual NAS

Containers

Run Docker®, LXD, Kata Containers and download Container Apps using Container Station.

VM High Availability (Coming soon)

VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.

Network & Virtual Switch

Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.

Trusted storage for virtualization

Powerful yet affordable

Cost-effective iSCSI/IP-SAN storage solutions with high bandwidth for reduced latency.

Flexible & Scalable

Supports multiple protocols and expansion options to meet business needs.

Data protection

Offers LUN encryption, snapshots, and backup to ensure data safety.

Compatible with top-tier solutions

The TDS-h2489FU R2 supports VMware® vSphere™, Microsoft® Hyper-V®, and Citrix® XenServer™ mainstream virtualization platforms. With the QNAP CSI Plugin for Kubernetes®, the TDS-h2489FU R2 is also ideal block storage for Kubernetes® containerized apps. Check QNAP NAS with Support for Virtualization application

Object storage certified as Veeam® Ready

Use the TDS-h2489FU R2 with QuObjects as the premier destination for S3 object storage and backup. QuObjects supports Object Lock, validated as Veeam® Ready – Object with Immutability. Learn More

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TDS-h2489FU R2, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Learn More: QNAP NAS supports Fibre Channel SAN, QNAP Fibre Channel cards

Switch to QTS operating system

for choosing various cache modes

The TDS-h2489FU R2 supports QTS - QNAP’s standard NAS operating system. QTS provides great everyday performance and efficient memory utilization.

Learn how-to

What’s the difference between QTS and QuTS hero?

Learn More

How to migrate data from an old NAS?

QTS and QuTS hero operating systems use different file systems. When you want to migrate an old NAS data to a new NAS, your action-taking will depend on your current situation. Please take proper actions to avoid irreversible data loss.

If you want to…

1. Migrate data from an old NAS to a new NAS, but both OS are differentYou cannot migrate system settings and data by simply moving current disks to a new NAS. You must back up old NAS data to a new one using Hybrid Backup Sync.

Learn how-to
If you want to…

2. Migrate data from an old NAS to a new NAS with a same OSYou can migrate system settings and data with few initial settings and moving drives. Please note that you must remove all the disks of the new NAS before switching its operating system (if needed).

Learn how-to

Learn More

5-year warranty as standard

The TDS-h2489FU R2 is backed by a 5-year warranty at no extra cost – providing your business organization with greater peace of mind.

QNAP Warranty Service

NAS Recovery Guide

How to choose an all-flash array?

First-choice TS-h3077AFU	U.2 NVMe-based TS-h2490FU	Dual-processor TDS-h2489FU R2
SATA SSD-based large storage space and powerful I/O performance	Built-in 25GbE high-performance file server	Dual processors to create a data center for huge enterprise systems and key data
• 30 x 2.5-inch SATA bays • 4K random read: Over 1.6M IOPS • AMD Ryzen™ 5 7000 Series Processors • Uses industry-leading DDR5 RAM, expandable to 192 GB (4 x 48 GB) • 3 x PCIe Gen 4 slots for 100GbE network cards • Connect eight TL-R2400PES-RP PCIe JBODs for up to 1 PB capacity • Long-term and stable supply until 2030	• 24 x 2.5-inch U.2 PCIe NVMe slots • 4K random reads: Over 661K IOPS • AMD EPYC™ 7002 Series Processors • Supports up to 4 TB (16 x 256 GB) DDR4 ECC RAM • 4 x 25GbE SFP28 SmartNIC ports, supports iSER offload transmission to accelerate virtualization applications and dense file access • 5 x PCIe Gen 4 slots for 100GbE network cards • Connect twelve TL-R2400PES-RP PCIe JBODs for up to 4 PB capacity	• 16 x 2.5-inch U.2 PCIe NVMe slots + 8 x 2.5-inch U.2 PCIe NVMe/SATA bays • 4K random read: Over 1M IOPS • Dual Intel® Xeon® Silver 4300 Series processors • Supports up to 1 TB (32 x 32 GB) DDR4 ECC RDIMM RAM • 2 x 25GbE SFP28 SmartNIC ports, supports iSER offload transmission to accelerate virtualization applications and dense file access • 4 x PCIe Gen 4 slots for 100GbE expansion • Two M.2 PCIe/SATA slots with configurable SSD cache acceleration • Connect ten TL-R2400PES-RP PCIe JBODs for up to 3 PB capacity

Learn More	Learn More	Learn More

Need help?

Optional Accessories

QM2-2P-244A

Dual M.2 22110/2280 PCIe SSD expansion card;
Dimension (L × W × H): 6.71 × 0.81 × 2.71 (inch)
Weight: 0.29 (kg)
Please check the M.2 SSD compatibility list and QM2 Installation Guide
QM2-2P-344 (EOL)

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 5.79 × 0.81 × 2.71 (inch)
Weight: 0.30 (kg)
QM2-2P-344A

Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x4 host interface
Dimension (L × W × H): 6.71 × 0.76 × 2.71 (inch)
Weight: 0.30 (kg)
QM2-2P-384 (EOL)

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 5.79 × 0.81 × 2.71 (inch)
Weight: 0.30 (kg)
QM2-2P-384A

Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x8 host interface
Dimension (L × W × H): 6.71 × 0.76 × 2.71 (inch)
Weight: 0.30 (kg)
QM2-2P10G1TB

QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8 , 1 x Marvell AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 6.01 × 0.74 × 2.71 (inch)
Weight: 0.30 (kg)
QM2-2P2G2T

QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port
Dimension (L × W × H): 6.01 × 0.81 × 2.71 (inch)
Weight: 0.29 (kg)
QM2-2P410G1T (EOL)

QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen4 x 4 , 1 x AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 7.36 × 0.76 × 2.71 (inch)
Weight: 0.30 (kg)
QM2-2P410G2T (EOL)

QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen4 x 4 , 2 x AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 7.36 × 0.76 × 2.71 (inch)
Weight: 0.30 (kg)
QM2-2S-220A

Dual M.2 22110/2280 SATA SSD expansion card;
Dimension (L × W × H): 5.79 × 0.81 × 2.71 (inch)
Weight: 0.30 (kg)
QM2-4P-384

Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 8.07 × 2.71 × 0.81 (inch)
Weight: 0.32 (kg)
QM2-4S-240 (EOL)

Quad M.2 2280 SATA SSD expansion card
Dimension (L × W × H): 8.07 × 2.71 × 0.81 (inch)
Weight: 0.32 (kg)
QDA-UMP4

M.2 2280 NVMe PCIe Gen4/Gen3 to U.2 NVMe PCIe Gen4 adapter, 15x69.85x100.4mm, thermal pads
Dimension (L × W × H): 3.95 × 2.75 × 0.59 (inch)
Weight: 0.20 (kg)

QNA-UC5G1T
SCR-HDD25A-96

Screw pack for 2.5" HDD / SSD intallation, 96 pieces, Flat head machine screw
Dimension (L × W × H): 0.04 × 4.65 × 5.04 (inch)
Weight: 0.01 (kg)
TRAY-25-BLK02

2.5" SSD Tray with key lock and two keys, black and metal
Dimension (L × W × H): 5.81 × 3.07 × 0.64 (inch)
Weight: 0.10 (kg)
RAIL-E03

New RAIL KIT for es2486dc
RAIL-E03 is included inside package of ES NAS and EJ JBOD series

QXG-100G2SF-CX6 (EOL)

Dual port per 100GbE Network adapter; 2 x QSFP28; Mellanox ConnectX-6 Dx controller
Dimension (L × W × H): 6.25 × 2.71 × 0.75 (inch)
Weight: 0.36 (kg)
QXG-100G2SF-E810

Dual port 100GbE Network adapter; 2 x QSFP28; Intel E810 Ethernet controller
Dimension (L × W × H): 6.68 × 2.72 × 0.74 (inch)
Weight: 0.36 (kg)
QXG-10G1T

Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 5.63 × 7.6 × 2.05 (inch)
Weight: 0.17 (kg)
QXG-10G2SF-X710

Dual-port SFP+ 10Gb network expansion card; low-profile formfactor; PCIe Gen3 x8
Dimension (L × W × H): 1.02 × 0.41 × 0.24 (inch)
Weight: 0.29 (kg)
QXG-10G2T

Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen3 x4
Dimension (L × W × H): 2.15 × 1.56 × 0.71 (inch)
Weight: 0.29 (kg)
QXG-10G2T-X710

Dual-port 10GbE Network Adaptor, Intel 700 series Ethernet Controller
Dimension (L × W × H): 4.47 × 2.71 × 0.72 (inch)
Weight: 0.24 (kg)
QXG-10G2TB (EOL)

Dual-port 10GbE Network Adaptor, Aquantia AQC113C
Dimension (L × W × H): 4.12 × 0.63 × 2.71 (inch)
Weight: 0.28 (kg)
QXG-25G2SF-CX6

Dual-port SFP28 25Gb network expansion card; Mellanox ConnectX-6 Lx;low-profile formfactor; PCIe Gen4 x8
Dimension (L × W × H): 4.72 × 0.65 × 2.72 (inch)
Weight: 0.15 (kg)
QXG-25G2SF-E810

2 port 25GbE(Intel E810-XXVAM2) Network Interface Cards (NIC)
Dimension (L × W × H): 4.7 × 2.71 × 0.71 (inch)
Weight: 0.23 (kg)
QXG-2G1T-I225

Single port 2.5GbE 4-speed Network card
Dimension (L × W × H): 2.65 × 2.71 × 0.99 (inch)
Weight: 0.19 (kg)
QXG-2G2T-I225

Dual port 2.5GbE 4-speed Network card
Dimension (L × W × H): 3.2 × 2.71 × 0.99 (inch)
Weight: 0.23 (kg)
QXG-2G4T-I225

Quad port 2.5GbE 4-speed Network card
Dimension (L × W × H): 4.12 × 2.71 × 0.95 (inch)
Weight: 0.24 (kg)
QXG-5G1T-111C

QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
Dimension (L × W × H): 5.71 × 7.48 × 2.05 (inch)
Weight: 0.20 (kg)
QXG-5G2T-111C

QNAP dual port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 2;low profile
Dimension (L × W × H): 5.71 × 7.48 × 2.05 (inch)
Weight: 0.20 (kg)
QXG-5G4T-111C

QNAP Quad port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 4;low profile
Dimension (L × W × H): 5.71 × 7.48 × 2.05 (inch)
Weight: 0.23 (kg)

QXP-10G2U3A

Dual-port USB 3.2 Gen 2 10Gbps Type-A PCIe Gen 3 x2 Card, Asmedia ASM3142
Dimension (L × W × H): 3.53 × 2.71 × 0.55 (inch)
Weight: 0.09 (kg)
QXP-1620S-B3616W

4-port miniSAS HD host bus adapter, Broadcom Mercator SAS3616W, PCIe 3.0 x 16 for TL SAS JBOD series
Dimension (L × W × H): 5.89 × 2.71 × 0.91 (inch)
Weight: 0.23 (kg)
QXP-16G2FC

QNAP 2-port 16Gbps fiber channel adapter, PCIe 3.0 x8, SFP+, low profile, w/ SFP+ 16G transceivers
Dimension (L × W × H): 7.48 × 5.63 × 1.97 (inch)
Weight: 0.40 (kg)
QXP-32G2FC

QNAP 2-port 32Gbps fiber channel adapter, PCIe 3.0 x8, SFP+, low profile, w/ SFP+ 32G optical transceivers
Dimension (L × W × H): 7.48 × 5.63 × 1.97 (inch)
Weight: 0.40 (kg)
QXP-3X4PES
QXP-3X8PES
QXP-820S-B3408

2-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series
Dimension (L × W × H): 5.11 × 2.71 × 9.06 (inch)
Weight: 0.21 (kg)
QXP-W6-AX200 (EOL)

QNAP WiFi 6 (Intel AX200) PCIe wireless card w/ antenna & brackets for NAS; Giga-byte GC-WBAX200 QNAP Edition
Dimension (L × W × H): 2.17 × 5.91 × 8.46 (inch)
Weight: 0.32 (kg)

TRX-10GITSFPP-SR

Optical Transceiver 10GbE SFP+ 850nm SR up to 300m industrial-temperature(-40~85°C )
Dimension (L × W × H): 2.35 × 0.55 × 0.47 (inch)
Weight: 0.08 (kg)
TRX-10GSFP-SR-MLX

Mellanox MFM1T02A-SR SFP+ Optical Module for 10GBASE-SR
Dimension (L × W × H): 4.72 × 7.68 × 1.38 (inch)
Weight: 0.10 (kg)
TRX-25GSFP28-SR

Optical Transceiver 25GbE SFP28 LC-LC 850nm SR up to 100m
Dimension (L × W × H): 3.8 × 0.54 × 0.41 (inch)
Weight: 0.07 (kg)
CAB-DAC15M-SFP28

SFP28 25GbE twinaxial direct attach cable, 1.5M
Dimension (L × W × H): 59.06 × 0.54 × 0.34 (inch)
Weight: 0.17 (kg)
CAB-DAC15M-SFPP

SFP+ 10GbE twinaxial direct attach cable, 1.5M
Dimension (L × W × H): 0.39 × 9.45 × 11.61 (inch)
This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
CAB-DAC30M-SFP28

SFP28 25GbE twinaxial direct attach cable, 3.0M
Dimension (L × W × H): 118.11 × 0.54 × 0.34 (inch)
Weight: 0.28 (kg)
CAB-DAC30M-SFPP

SFP+ 10GbE twinaxial direct attach cable, 3.0M
This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
CAB-DAC50M-SFPP

SFP+ 10GbE twinaxial direct attach cable, 5.0M
This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
CAB-NIC40G30M-QSFP

QSFP+ 40GbE twinaxial direct attach cable, 3.0M
Dimension (L × W × H): 0.39 × 9.45 × 11.73 (inch)
Weight: 0.50 (kg)
This 40GbE QSFP+ network cable is designed for NAS models which are compatible with the QNAP 40GbE NIC LAN-40G2SF-MLX
CAB-SAS05M-8644

Mini SAS external cable (SFF-8644 to SFF-8644), 0.5 m
Dimension (L × W × H): 0.39 × 9.45 × 11.61 (inch)
Weight: 0.15 (kg)
CAB-SAS05M-8644-8088

Mini SAS external cable (SFF-8644 to SFF-8088), 1.0 m
Dimension (L × W × H): 0.39 × 9.45 × 11.61 (inch)
Weight: 0.12 (kg)
CAB-SAS10M-8644

Mini SAS external cable (SFF-8644 to SFF-8644), 1.0 m
Dimension (L × W × H): 0.39 × 9.45 × 11.61 (inch)
Weight: 0.15 (kg)
CAB-SAS10M-8644-8088

Mini SAS external cable (SFF-8644 to SFF-8088), 1.0 m
Dimension (L × W × H): 0.39 × 9.45 × 11.61 (inch)
Weight: 0.12 (kg)
CAB-SAS20M-8644

Mini SAS external cable (SFF-8644 to SFF-8644), 2M
Dimension (L × W × H): 0.39 × 9.45 × 11.61 (inch)
Weight: 0.24 (kg)
CAB-SAS20M-8644-8088

Mini SAS external cable (SFF-8644 to SFF-8088), 2M
Dimension (L × W × H): 0.39 × 9.45 × 11.61 (inch)
Weight: 0.24 (kg)

RAM-16GDR4ECT0-RD-3200

DDR type: DDR4(288PIN)
Capacity: 16GB
Spec: 1G X 8
Frequency: DDR4-3200
Form(PIN): 288PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 2048M*72
Temperature: 0℃~85℃
Environmental Regulation: Halogen Free
RAM-16GDR4K0-RD-3200

16GB DDR4 RAM, 3200 MHz, RDIMM
RAM-32GDR4ECT0-RD-3200

DDR type: DDR4(288PIN)
Capacity: 32GB
Spec: 2G X 8
Frequency: DDR4-3200
Form(PIN): 288PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 4G*72
Temperature: 0℃~85℃
Environmental Regulation: Halogen Free
RAM-8GDR4ECT0-RD-3200

DDR type: DDR4(288PIN)
Capacity: 8GB
Spec: 1G X 8
Frequency: DDR4-3200
Form(PIN): 288PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 1024M*72
Temperature: 0℃~85℃
Environmental Regulation: Halogen Free
